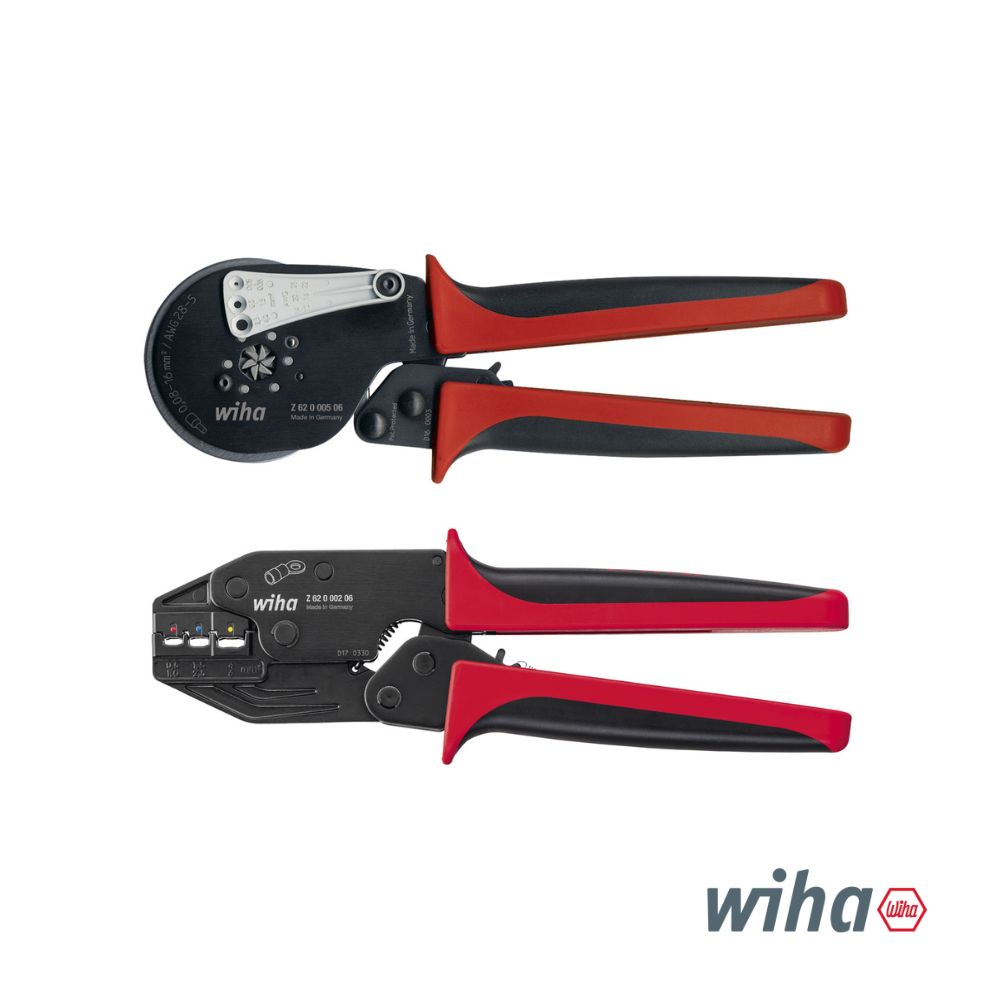

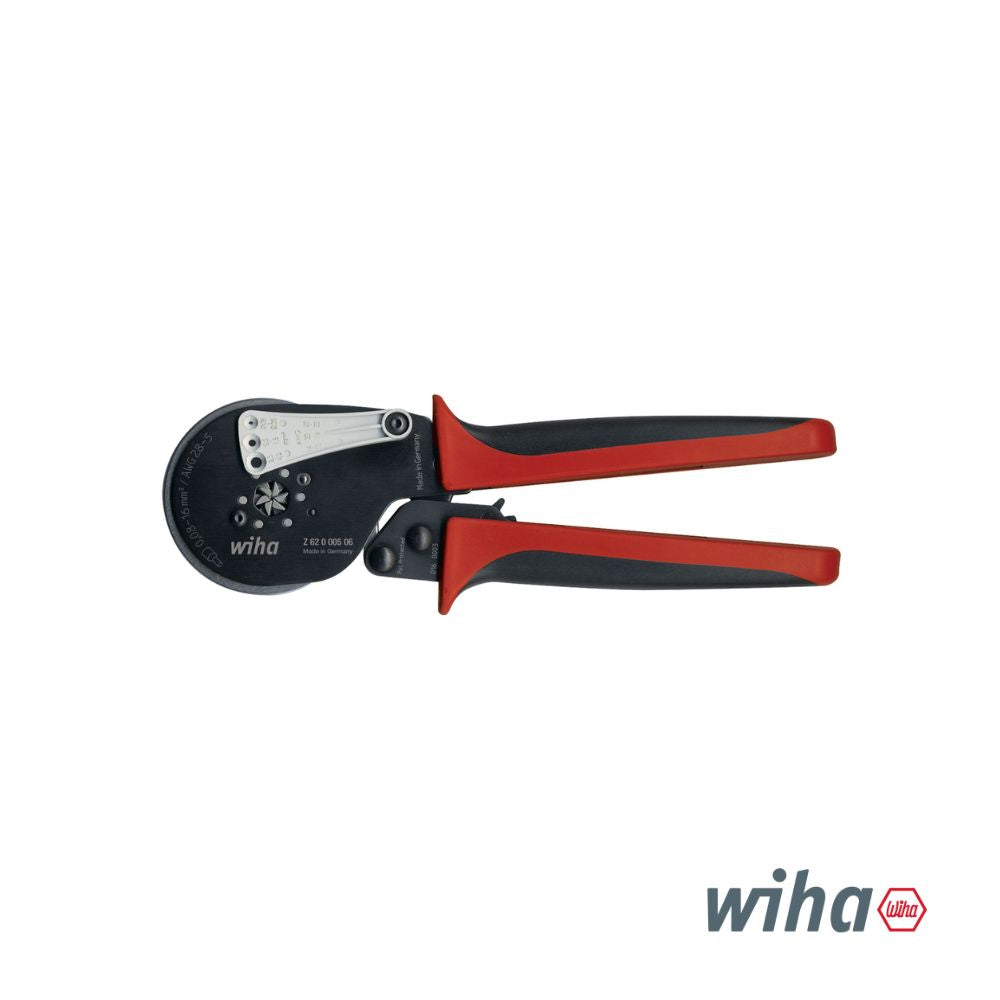

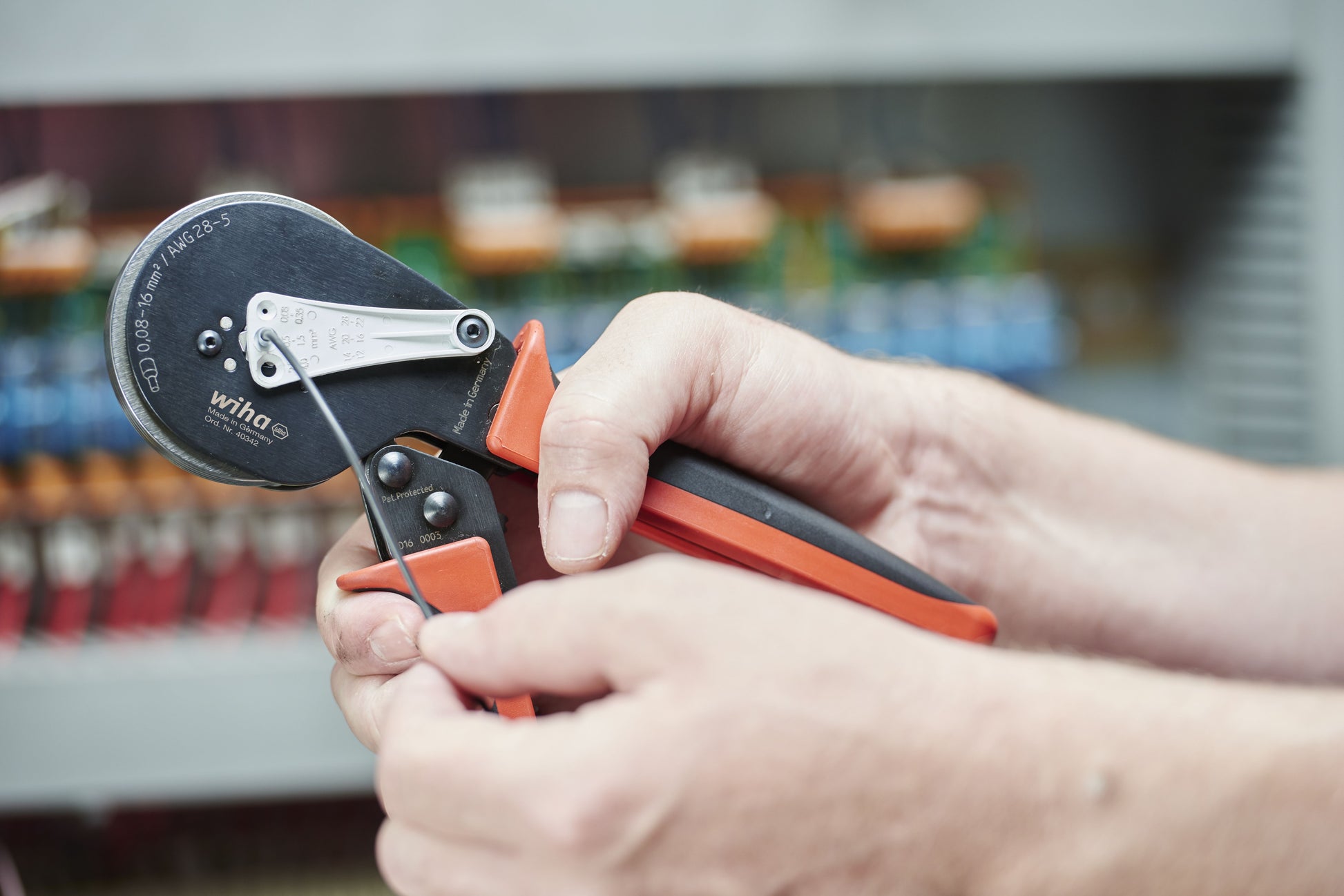

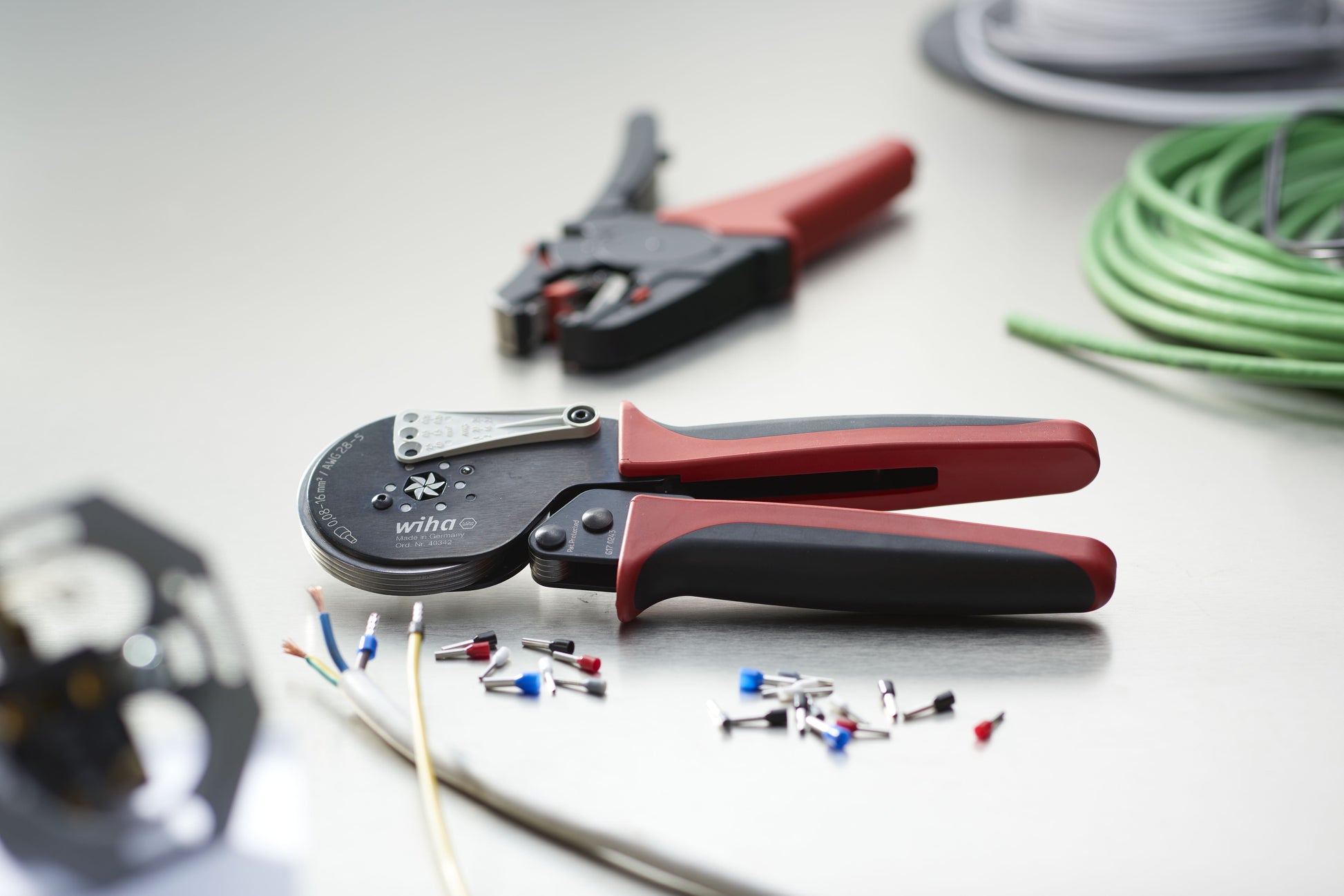

For wire-end sleeves hex crimping
Product description
Conventional use of crimping pliers poses a risk that wire-end sleeves will snag in the pliers or be crimped incorrectly. These automatic crimping pliers with hex crimping can eliminate unnecessary cable and wire-end sleeve waste. With a wide crimping range between 0.08 and 16 mm², they conveniently combine two crimping pliers in a single tool. The crimping pliers thus cover most applications. The hexagonal crimping prevents small wire-end sleeves from snagging. The feed also provides process safety by preventing the plastic cover from being crimped. Thanks to its automated crimp function, the pliers are suitable for empty sleeves (up to 16 mm²) and twin sleeves (up to 10 mm²). The elastic, impact-cushioning plastic handles guarantee comfortable, fatigue-free work. An integrated lever ensures that the crimping process can be stopped manually at any time.
Application
For processing of wire-end sleeves with and without isolating collar according to DIN 46228, EN 50027.

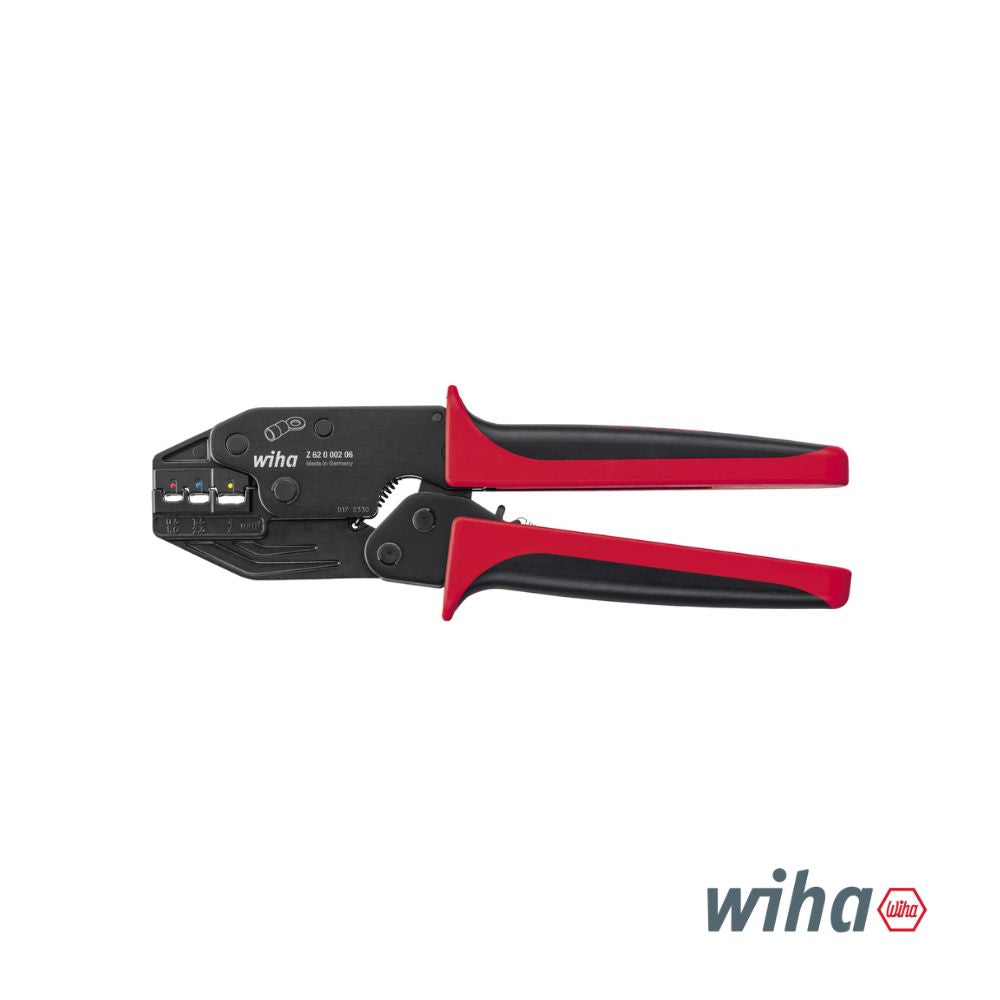

For Insulated cable eyes and contacts
Product description
Conventional use of crimping pliers poses a risk that cable lugs will snag in the pliers or be crimped incorrectly. The crimping pliers with oval crimping (O-Crimp) from Wiha can eliminate unnecessary waste of cable and wire-end sleeves. It has a crimping range from 0.5 to 6.0 mm², which covers a large part of all possible applications. Thanks to the color coding of the crimping ranges, the red area can be used for crimping connectors insulated in red from 0.5 to 1.0 mm², the blue area for connectors insulated in blue from 1.5 to 2.5 mm², and the yellow area for connectors insulated in yellow from 4.0 to 6.0 mm². The high crimping quality results from the automatically adjusted pressure force and the option of interrupting the crimping process manually by an emergency release function.
Dimensions
80 x 220 x 25 mm
Standards
Crimping according to DIN 46231, DIN 46237, DIN 46245 part 1-3.
Application
For processing red, blue and yellow insulated cable lugs, pin terminals, male blade connectors, female blade connectors, circular pins, butt connectors and parallel connectors.
